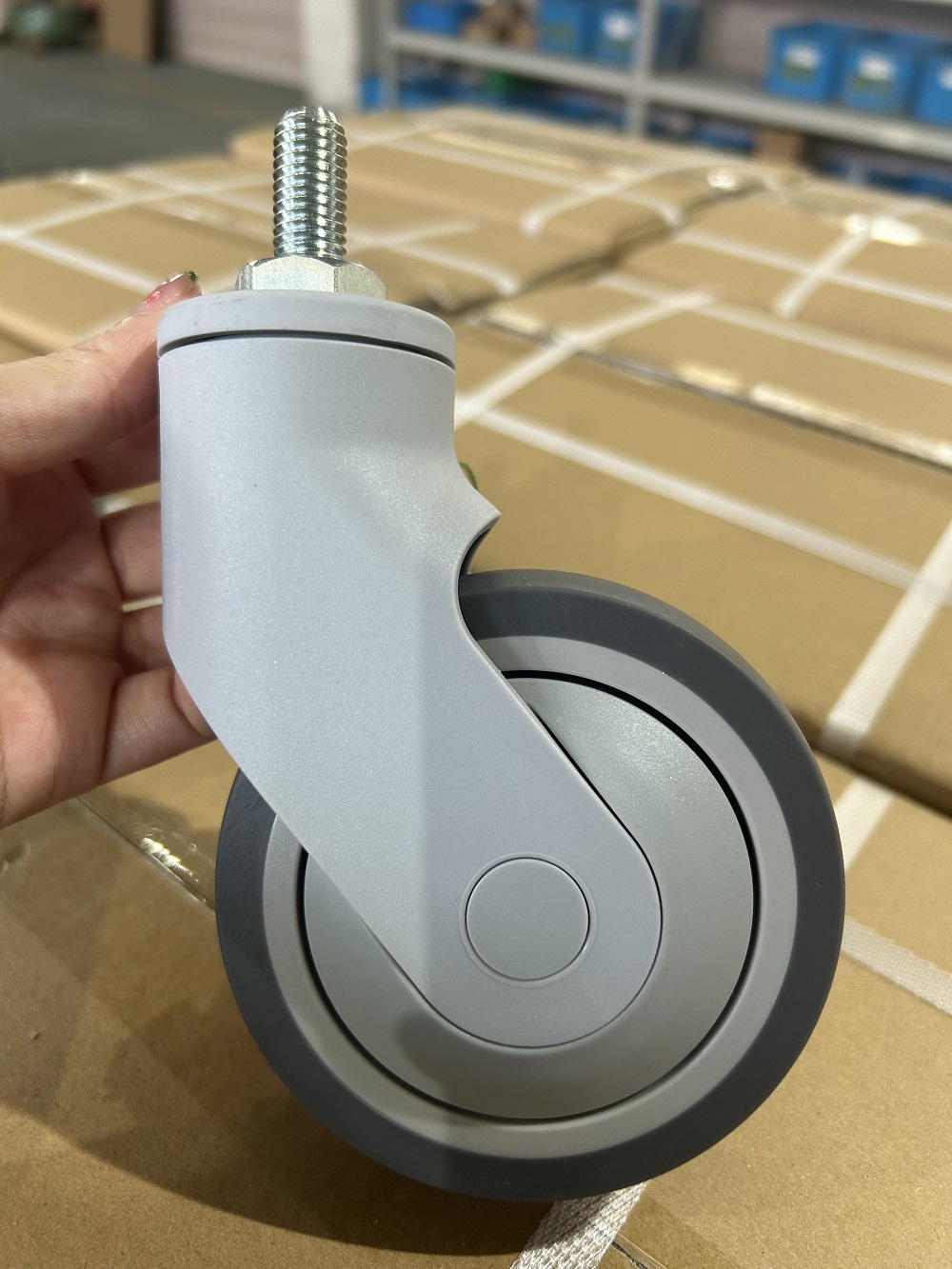

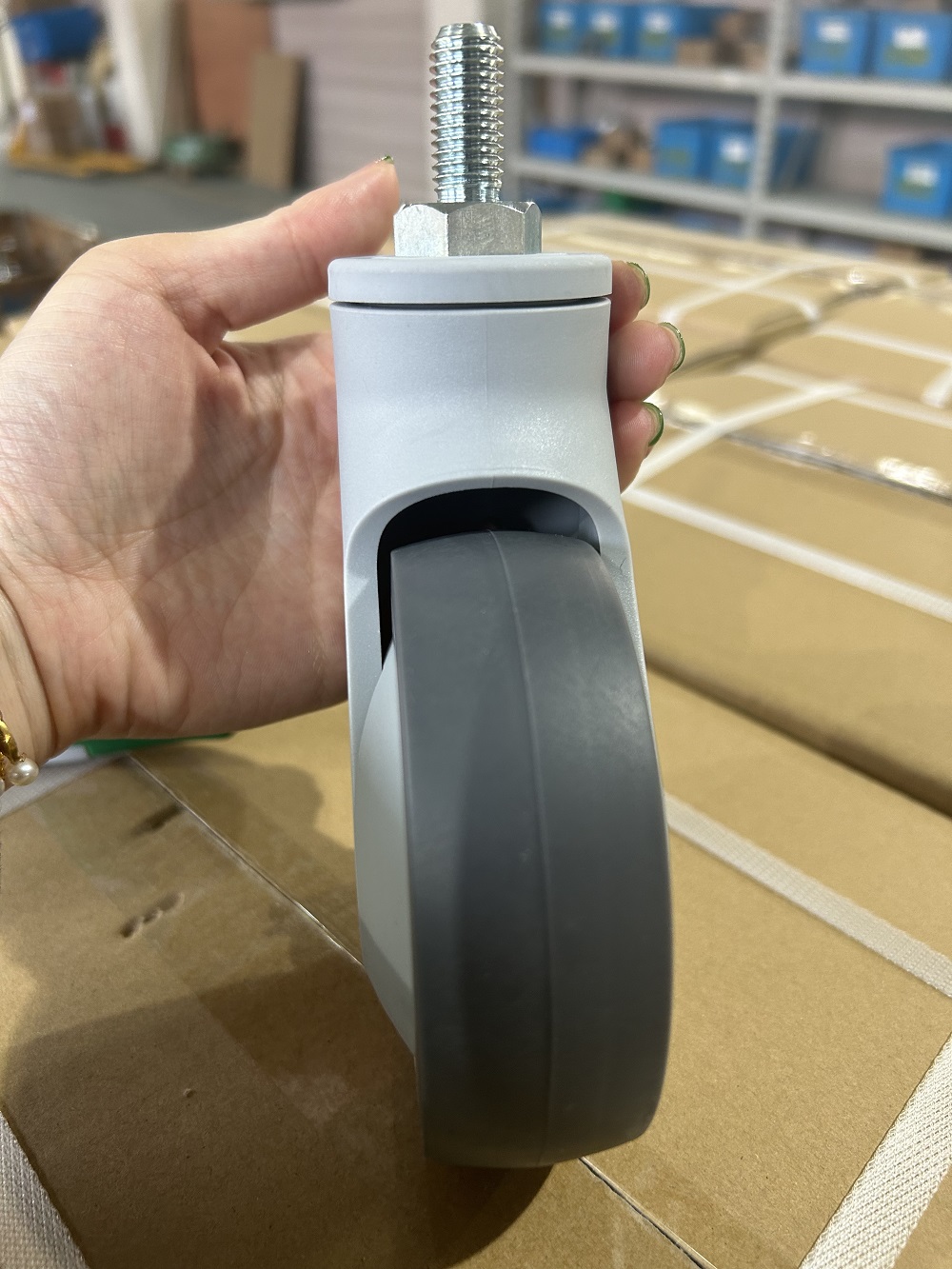

5724-11G SINGLE PLASTIC CASTERS WITH BRAKE

Series：57 SERIES SINGLE PLASTIC CASTERS WITH BRAKE

Types：5724-11G

Description ：

57 series casters main frame and wheel core are made of high strength polyamide material, beautiful, anti-corrosion, anti-rust, rotating parts all use precision ball bearing structure, rotation flexible mute, good bearing performance, ensure the service life of casters, tire surface using super quiet TPE material injection molding, wear-resistant, impact- resistant, bearing large whole mute wear-resistant, light and flexible rotation, good elasticity

consult Download

Description

Technical Data
Wheel diameter	100mm
Width of Tread	31.8mm
Baseboard length	79 mm
Floor hole distance (L)	60mm
Floor hole distance (w)	57mm
Mounting hole diameter	8.5mm
Swivel Interference	109.4mm
Overall height	144mm
Temperature	- 10 / + 40 °C
Standard	EN 12531
Weight	0.7 kg
Load capacity	75 kg
Load capacity(Static)	150 kg

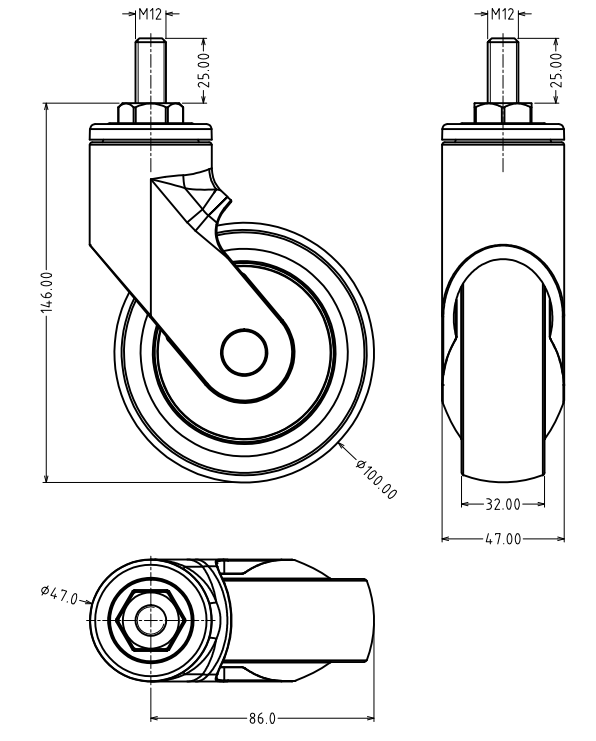

Dimensions

Structure & Mounting
