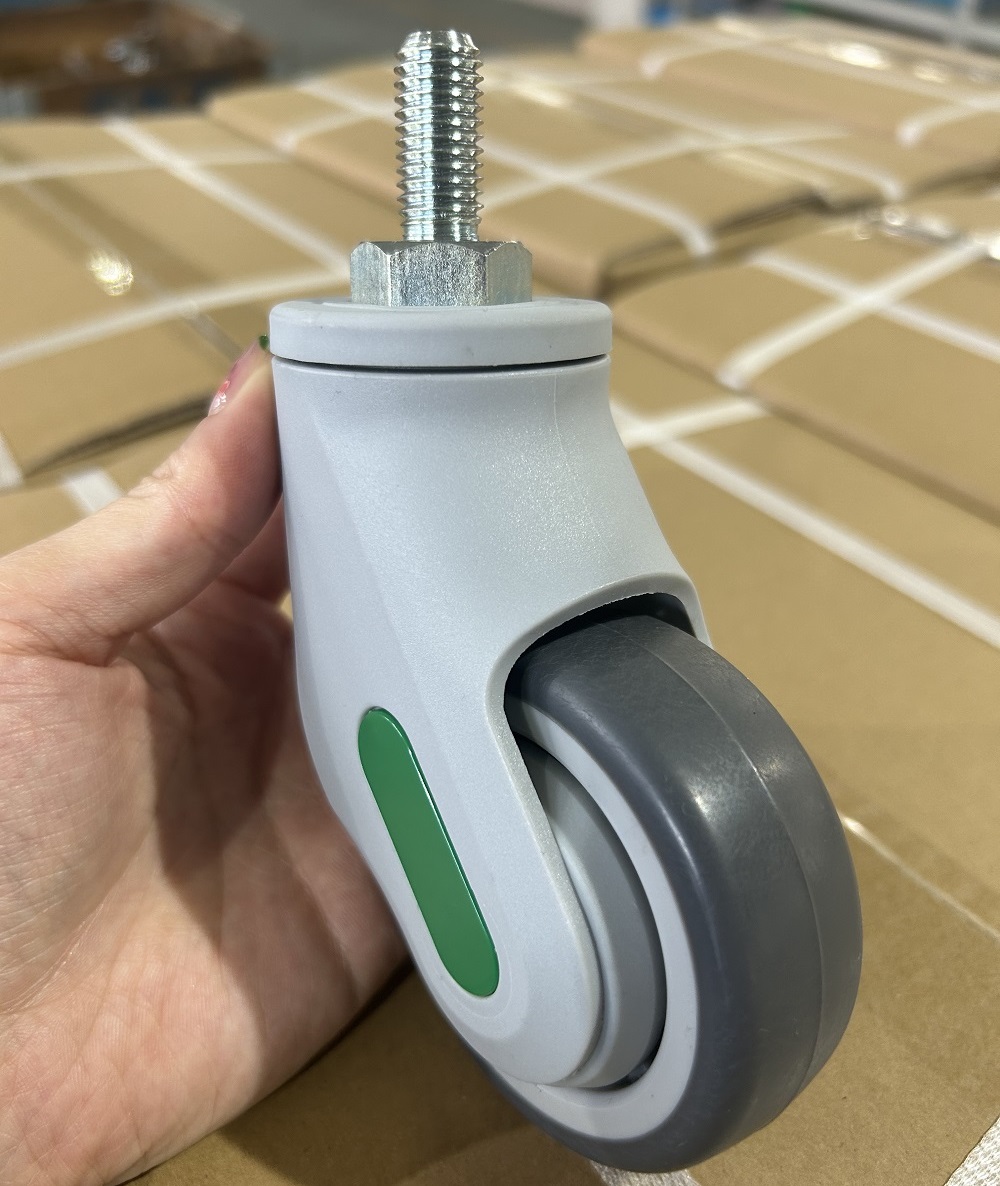

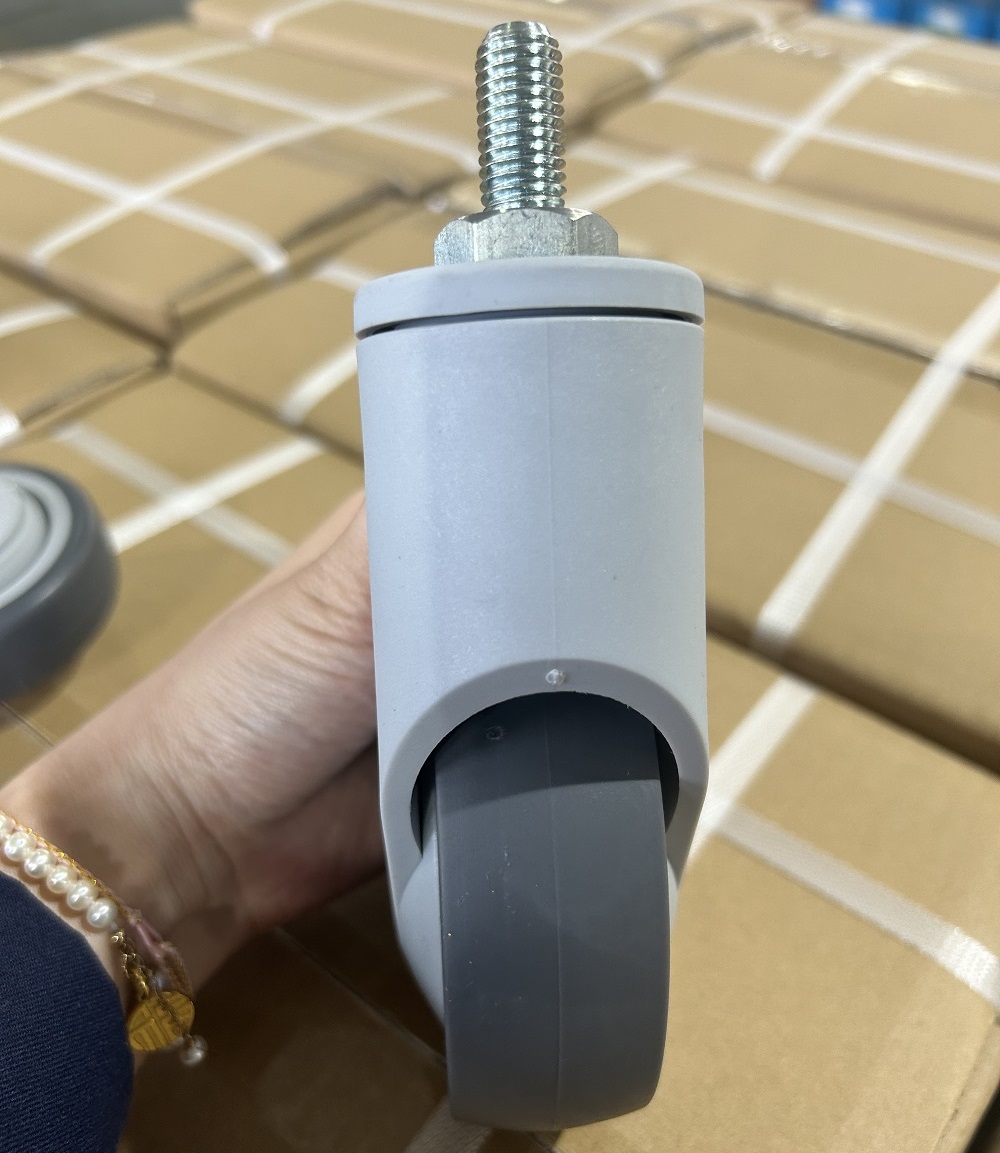

ZOGO 58series 75mm 3" Swivel Casters Full-Plastic Medical Caster Wheel

ZOGO 58series 75mm 3" Swivel Casters Full-Plastic Medical Caster Wheel

Series：58series swivel type

Types：5833-11G

Description ：

1. TPE(TPR) material with good hydrolysis resistance 2. Rotating parts all use precision ball bearing structure 3. High cost-effective

consult Download

Description

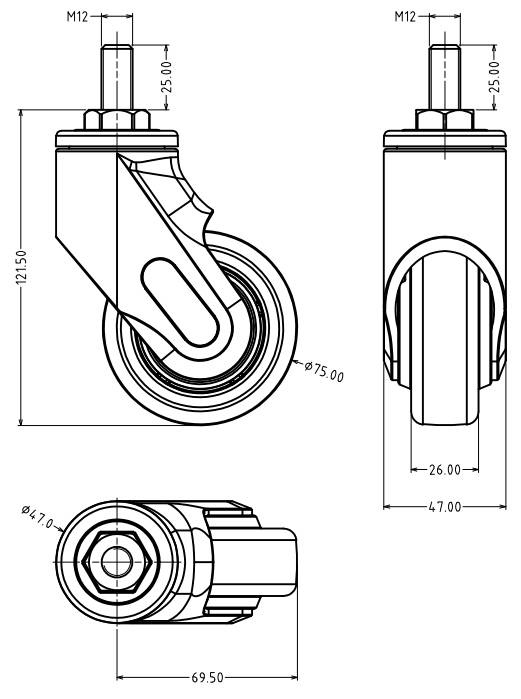

Drawing

Technical Data
Wheel diameter	75 mm
Width of Tread	26.00 mm
Screw diameter	M12
Screw length	25mm
Bracket width	47.00mm
Swivel Interference	69.50 mm
Overall height	121.50 mm
Temperature	- 10 / + 40 °C
Standard	EN 12531
Weight	0.6 kg
Load capacity 75 kg
Load capacity(Static) 150 kg

Product advantages:

* Patented exterior design

* Easy to install

* Excellent wear resistance and hydrolysis resistance

* All-plastic casters, unique patented internal structure

* High cost performance

Tags： SINGLE PLASTIC CASTERS WITHOUT BRAKE
