ZOGO 12series 5" 125mm Twin Wheel Casters for Hospital Bed Incubators

ZOGO 12series 5" 125mm Twin Wheel Casters for Hospital Bed Incubators

Series：12series brake type

Types：1245-82G

Description ：

1. TPE(TPR) material with good hydrolysis resistance 2. Rotating parts all use precision ball bearing structure 3. High cost-effective

consult Download

Description

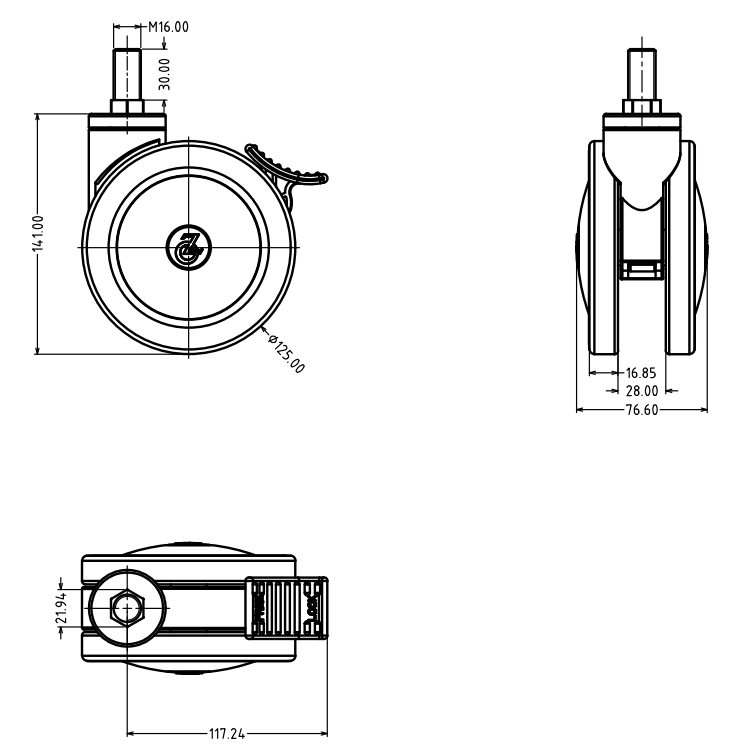

Drawing

Technical Data
Wheel diameter	125 mm
Width of Tread	16.85 mm
Screw diameter	M16
Screw length	30mm
Bracket width	76.60mm
Swivel Interference	117,24 mm
Overall height	141.00 mm
Temperature	- 10 / + 40 °C
Standard	EN 12531
Weight	0.6 kg
Load capacity 90 kg
Load capacity(Static) 180 kg

Product advantages:

* Patented exterior design

* Easy to install

* Excellent wear resistance and hydrolysis resistance

* All-plastic casters, unique patented internal structure

* High cost performance

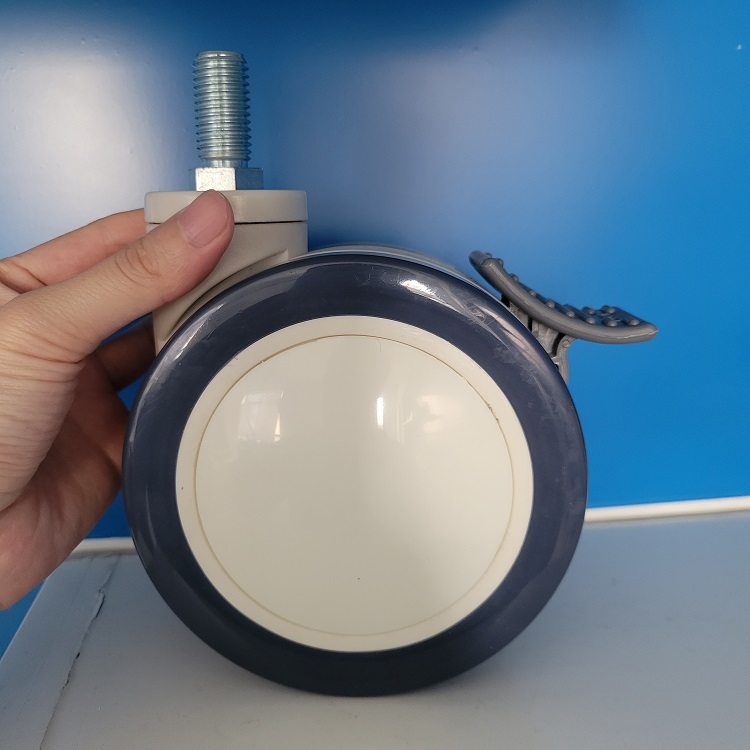

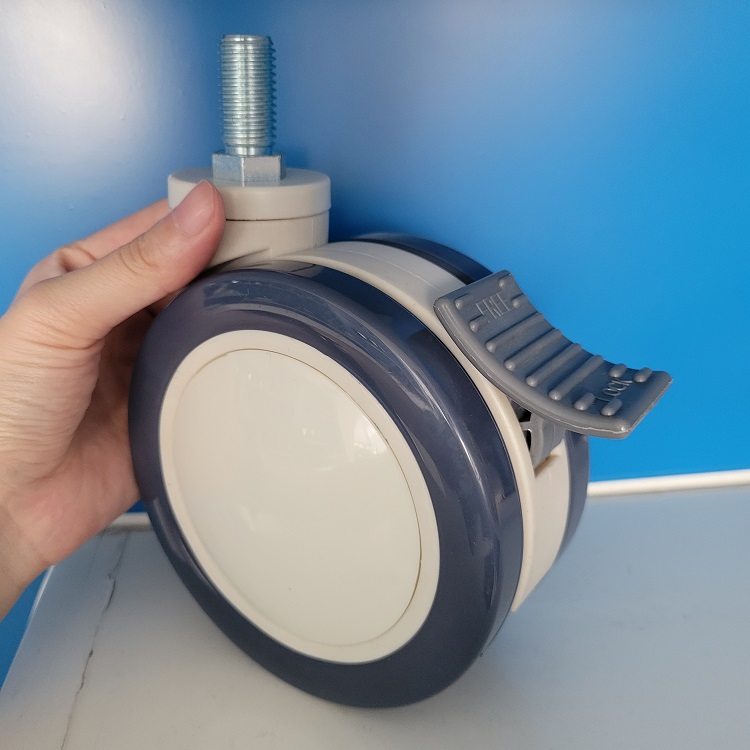

Usage pictures:
