ZOGO 12series 4" 100mm Twin Wheel Caster with Brake

ZOGO 12series 4" 100mm Twin Wheel Caster with Brake

Series：12series brake type

Types：1244-82G

Description ：

1. TPE(TPR) material with good hydrolysis resistance 2. Rotating parts all use precision ball bearing structure 3. High cost-effective

consult Download

Description

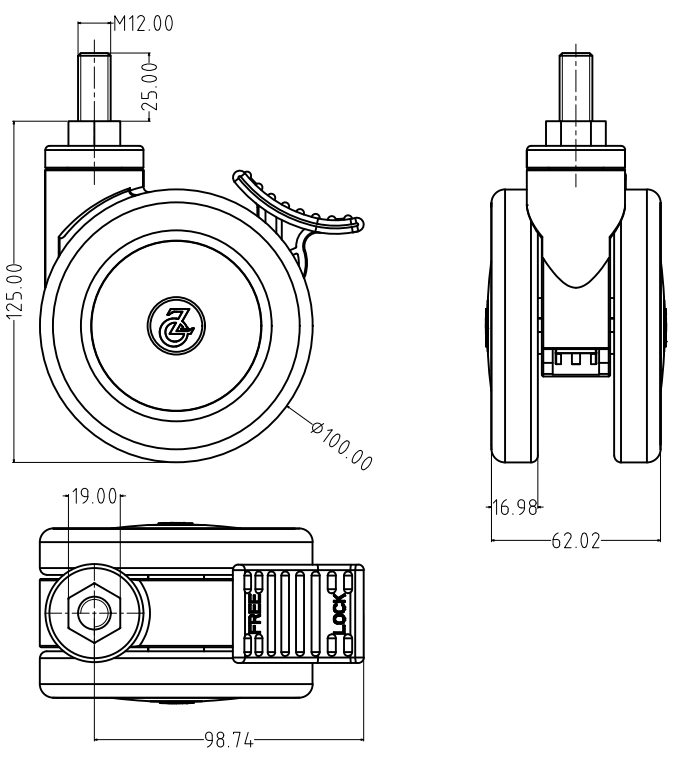

Drawing

Technical Data
Wheel diameter	100 mm
Width of Tread	16.98 mm
Screw diameter	M12
Screw length	25mm
Bracket width	62.02mm
Swivel Interference	98.74 mm
Overall height	125.00 mm
Temperature	- 10 / + 40 °C
Standard	EN 12531
Weight	0.6 kg
Load capacity 80 kg
Load capacity(Static) 160 kg

Product advantages:

* Patented exterior design

* Easy to install

* Excellent wear resistance and hydrolysis resistance

* All-plastic casters, unique patented internal structure

* High cost performance

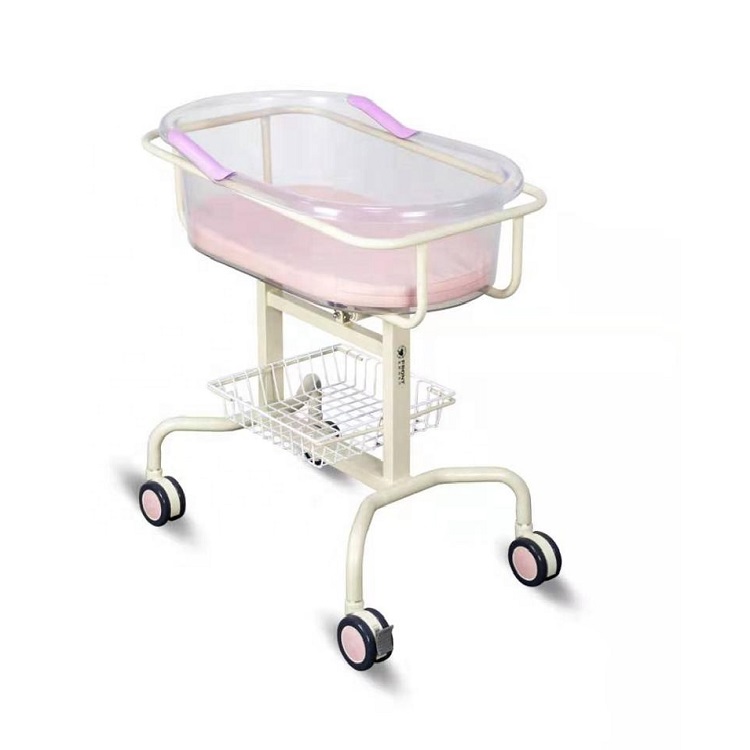

Usage pictures:
