ZOGO 12series Twin Wheel Castor 3" 75mm Brake Medical Caster

ZOGO 12series Twin Wheel Castor 3" 75mm Brake Medical Caster

Series：12series brake type

Types：1243-82G

Description ：

1. TPE(TPR) material with good hydrolysis resistance 2. Rotating parts all use precision ball bearing structure 3. High cost-effective

consult Download

Description

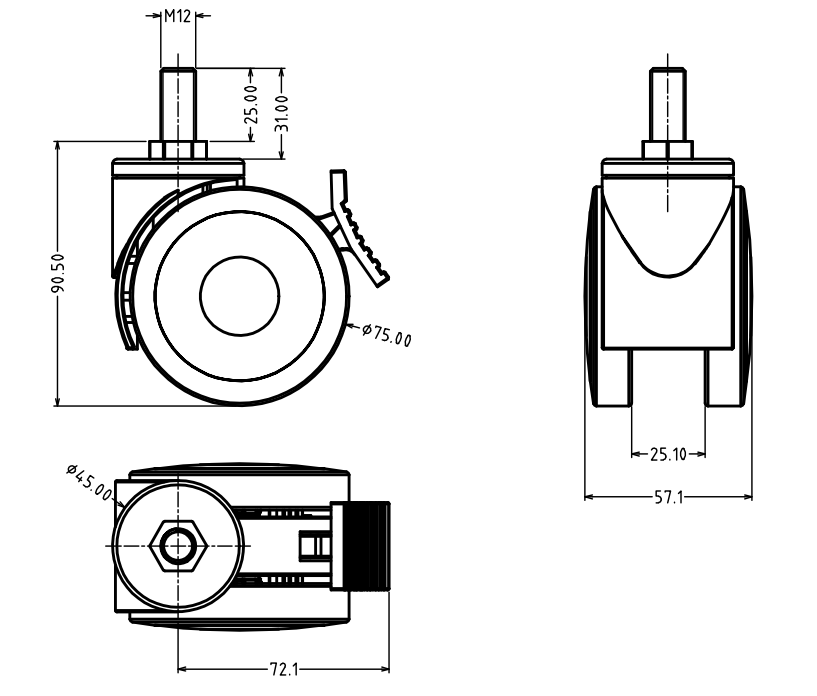

Drawing

Technical Data
Wheel diameter	75 mm
Width of Tread	25.10 mm
Screw diameter	M12
Screw length	25mm
Bracket width	57.10mm
Swivel Interference	72.1 mm
Overall height	90.50 mm
Temperature	- 10 / + 40 °C
Standard	EN 12531
Weight	0.6 kg
Load capacity 70 kg
Load capacity(Static) 140 kg

Product advantages:

* Patented exterior design

* Easy to install

* Excellent wear resistance and hydrolysis resistance

* All-plastic casters, unique patented internal structure

* High cost performance
