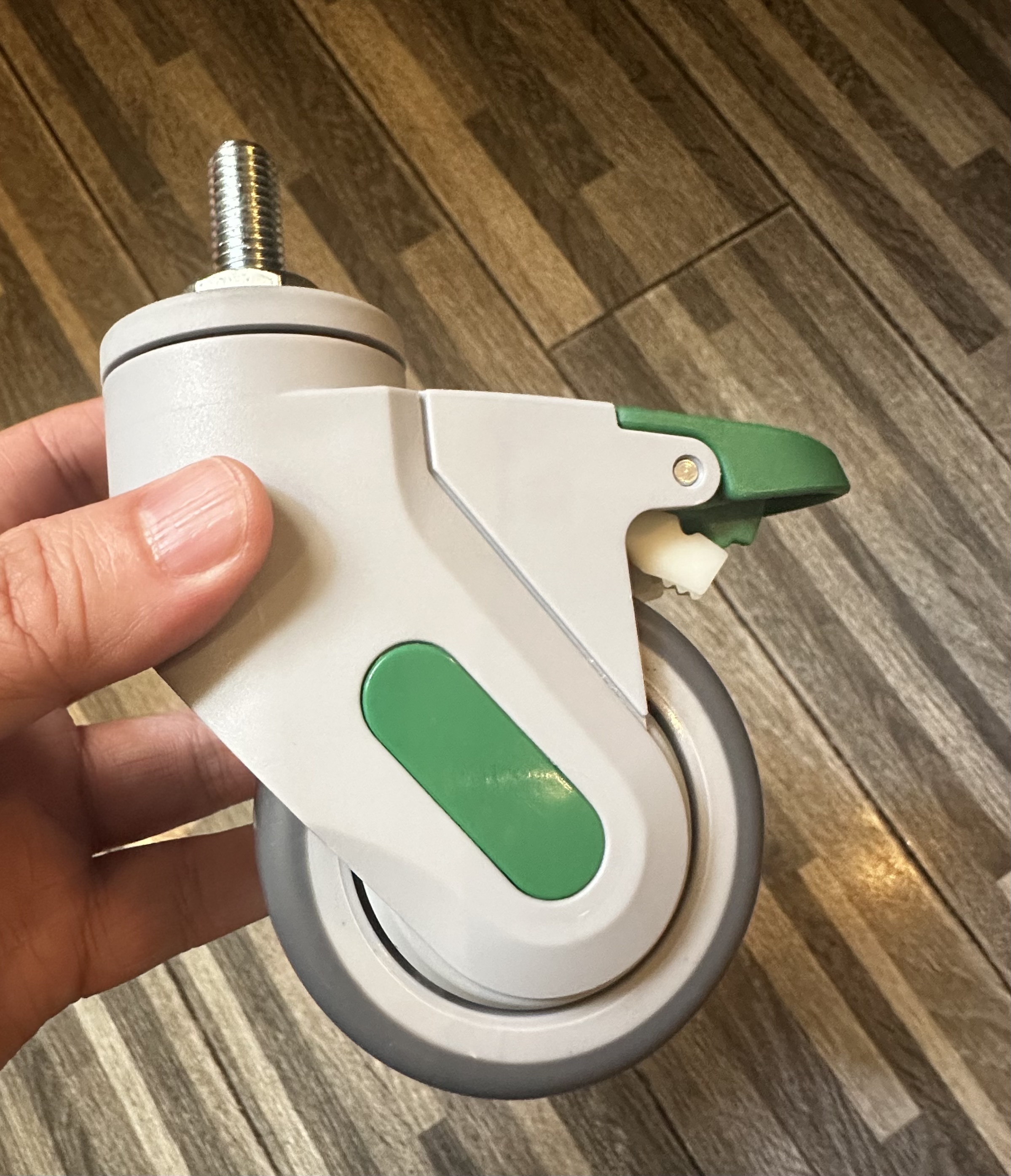

5744-11G SINGLE PLASTIC CASTERS WITH BRAKE

Series：57 SERIES SINGLE PLASTIC CASTERS WITH BRAKE

Types：5744-11G

Description ：

57 series casters main frame and wheel core are made of high strength polyamide material, beautiful, anti-corrosion, anti-rust, rotating parts all use precision ball bearing structure, rotation flexible mute, good bearing performance, ensure the service life of casters, tire surface using super quiet TPE material injection molding, wear-resistant, impact- resistant, bearing large whole mute wear-resistant, light and flexible rotation, good elasticity

consult Download

Description

Technical Data
Wheel diameter	100 mm
Width of Tread	31.8 mm
Screw diameter	M12
Screw length	25mm
Hexagonal height	8 mm
Bracket diameter	52mm
Swivel Interference	109.4 mm
Overall height	144 mm
Temperature	- 10 / + 40 °C
Standard	EN 12531
Weight	0.6 kg
Load capacity 75 kg
Load capacity(Static) 150 kg

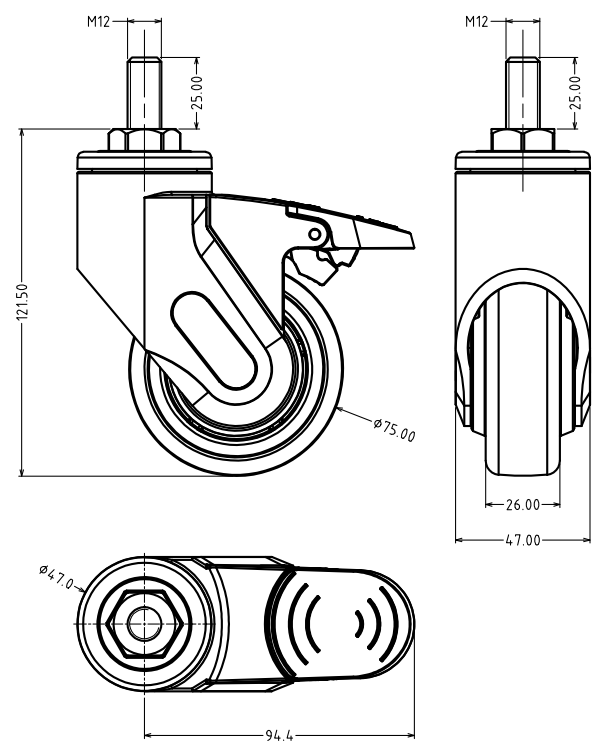

Dimensions

Structure & Mounting
