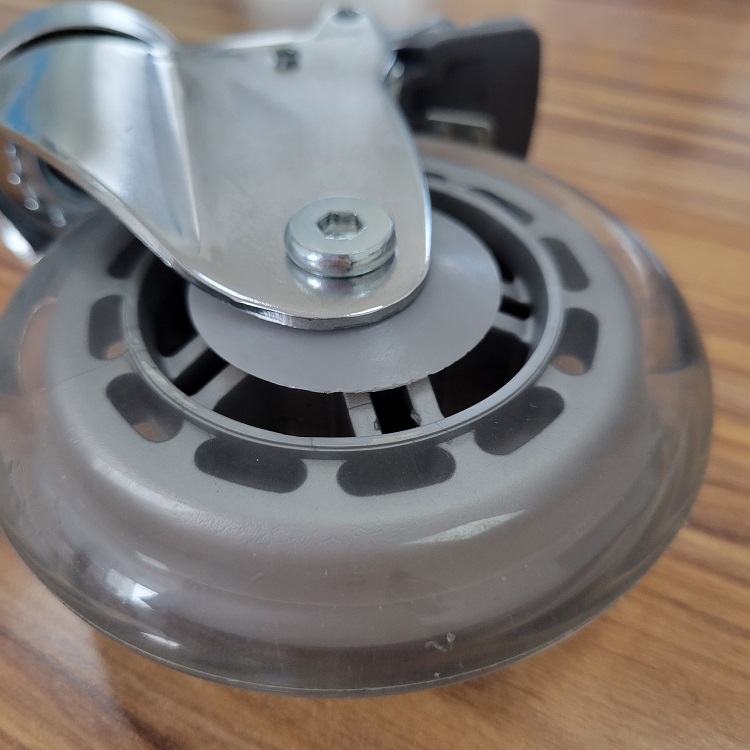

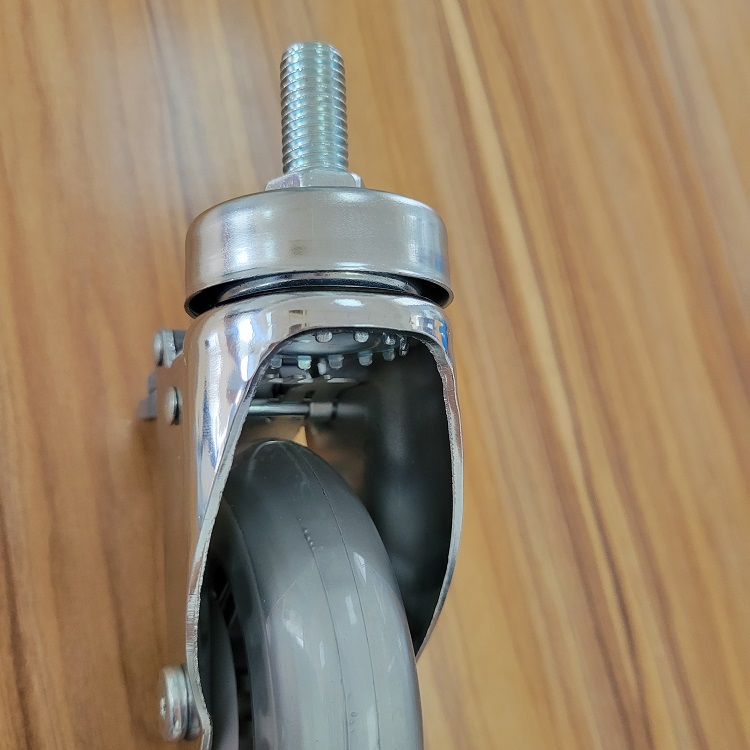

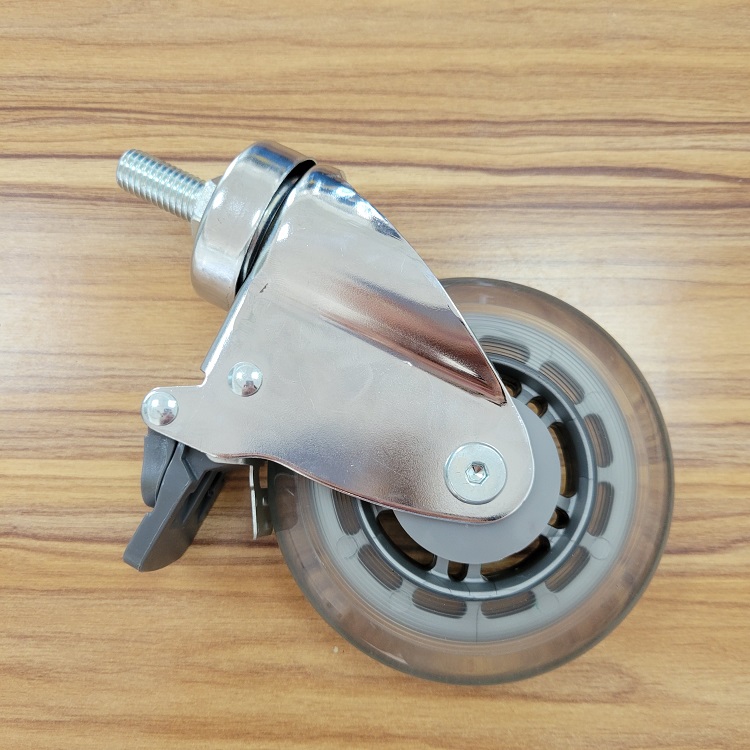

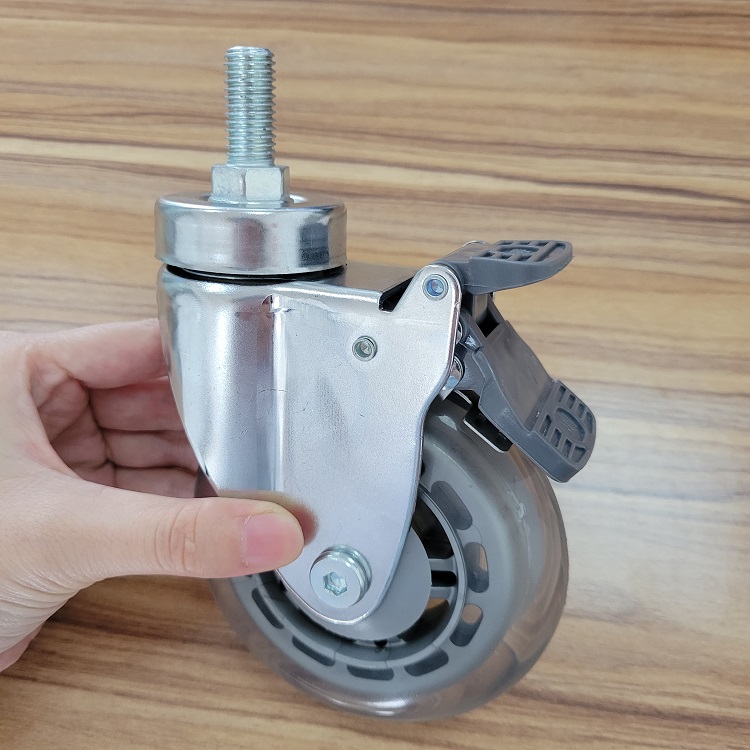

4843-11G PRECISION MUTE WHEEL

Series：48 SERIES PRECISION MUTE WHEEL

Types：4843-11G

Description ：

The 48 series adopt the steel frame main structure, have the stronger bearing capacity, the universal rotation and the wheel shaft adopt the precise mute ball bearing, the rotation is flexible and the mute effect is good; Double linkage brake structure, good braking effect; The wheel plate has the wheel cover design, dustproof, anti-winding, protects the wheel rotation.

consult Download

Description

Technical Data
Wheel diameter	75 mm
Width of Tread	23.5 mm
Castor width	45.93 mm
Bolt-Ø	M12
Bolt length	25 mm
Hexagonal opposite S	17 mm
Radius of rotation	79.8 mm
Overall height	114 mm
Temperature	- 10 / + 40 °C
Standard	EN 12531
Weight	0.36 kg
Load capacity	70 kg
Load capacity(Static)	140 kg

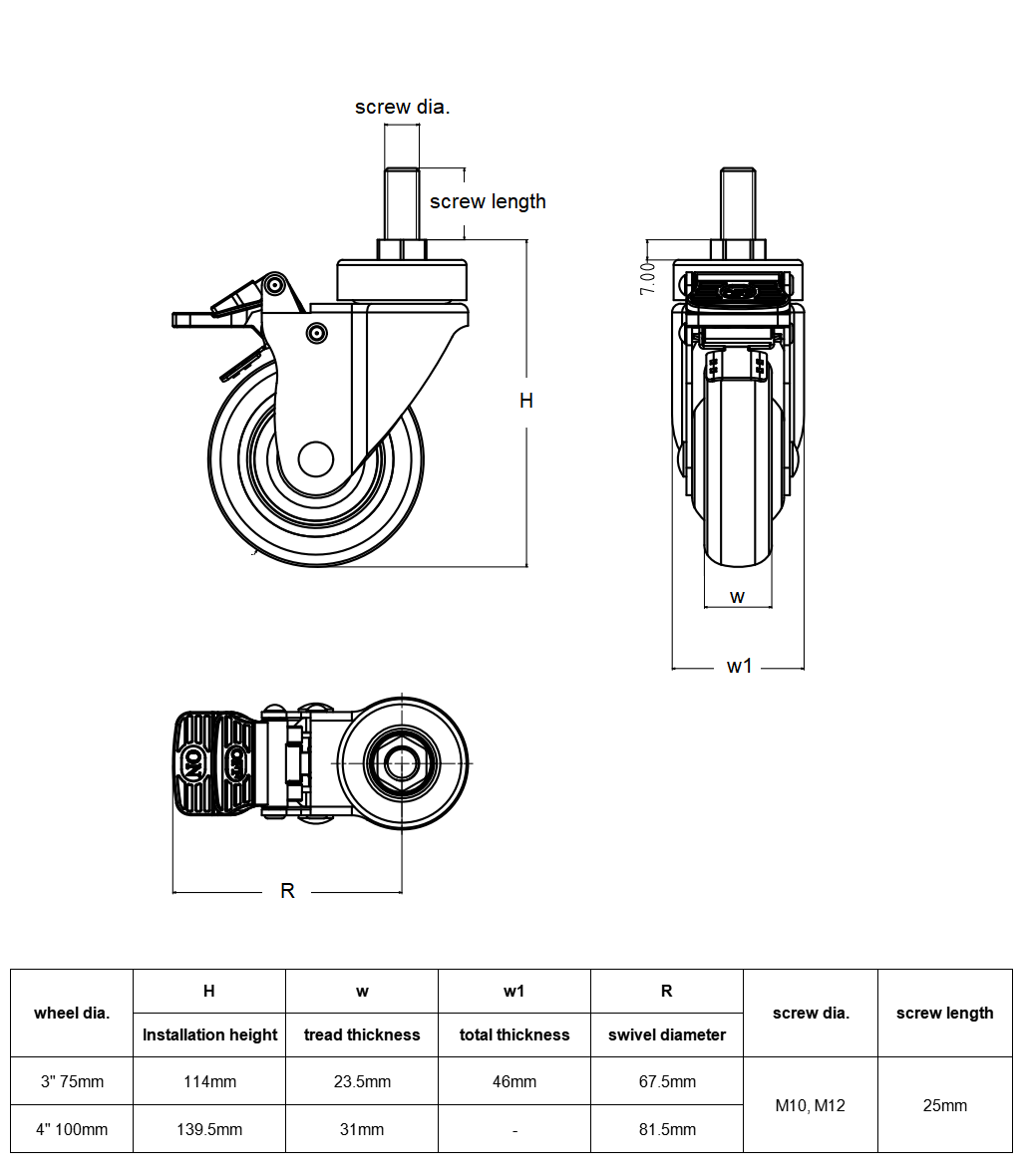

Dimensions

Structure & Mounting
