Technical Data | |
Wheel diameter |
75 mm |
Width of Tread | 23.5 mm |
Castor width | 45.93 mm |
Floor length | 70 mm |
Floor width | 58 mm |
Install the aperture | 8.5 mm |
Radius of rotation | 79.8 mm |
Overall height | 115.5 mm |
Temperature | - 10 / + 40 °C |
Standard | EN 12531 |
Weight | 0.42 kg |
Load capacity | 70 kg |
Load capacity(Static) | 140 kg |

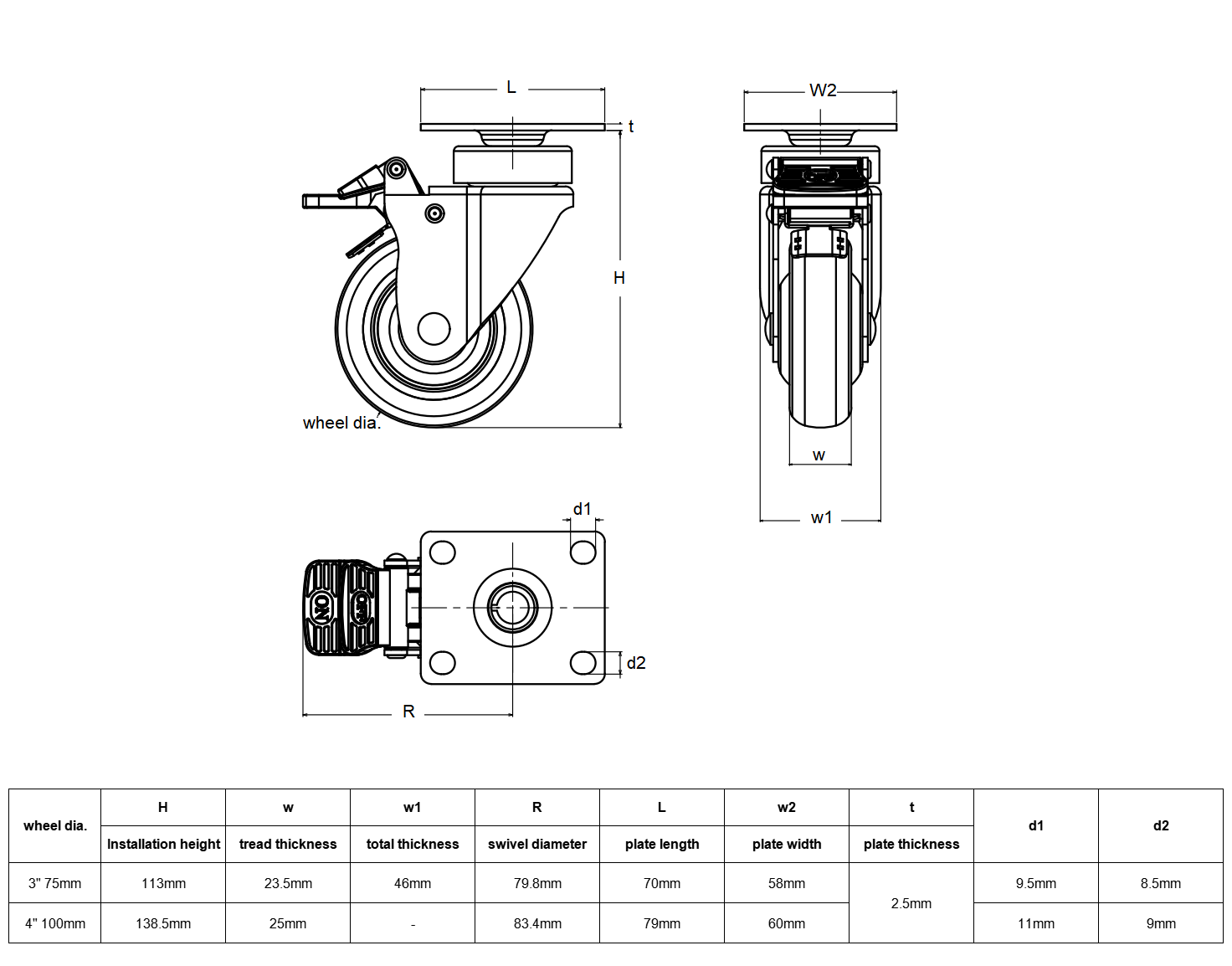

Dimensions
Structure & Mounting
