4833-11G PRECISION MUTE WHEEL

Series：48 SERIES PRECISION MUTE WHEEL

Types：4833-11G

Description ：

48 series adopt the steel frame main structure, have the stronger bearing capacity, the universal rotation and the wheel shaft adopt the precise mute ball bearing, the rotation is flexible and the mute effect is good; Double linkage brake structure, good braking effect; The wheel plate has the wheel cover design, dustproof, anti-winding, protects the wheel rotation.

consult Download

Description

Technical Data
Technical Data	75 mm
Wheel diameter	23.5 mm
Width of Tread	45.93 mm
Bolt-Ø	M12
Bolt length	25 mm
Hexagonal opposite S	17 mm
Radius of rotation	67.5 mm
Castor width	114 mm
Temperature	- 10 / + 40 °C
Standard	EN 12531
Weight	0.45 kg
Load capacity	70 kg
Load capacity(Static)	140 kg

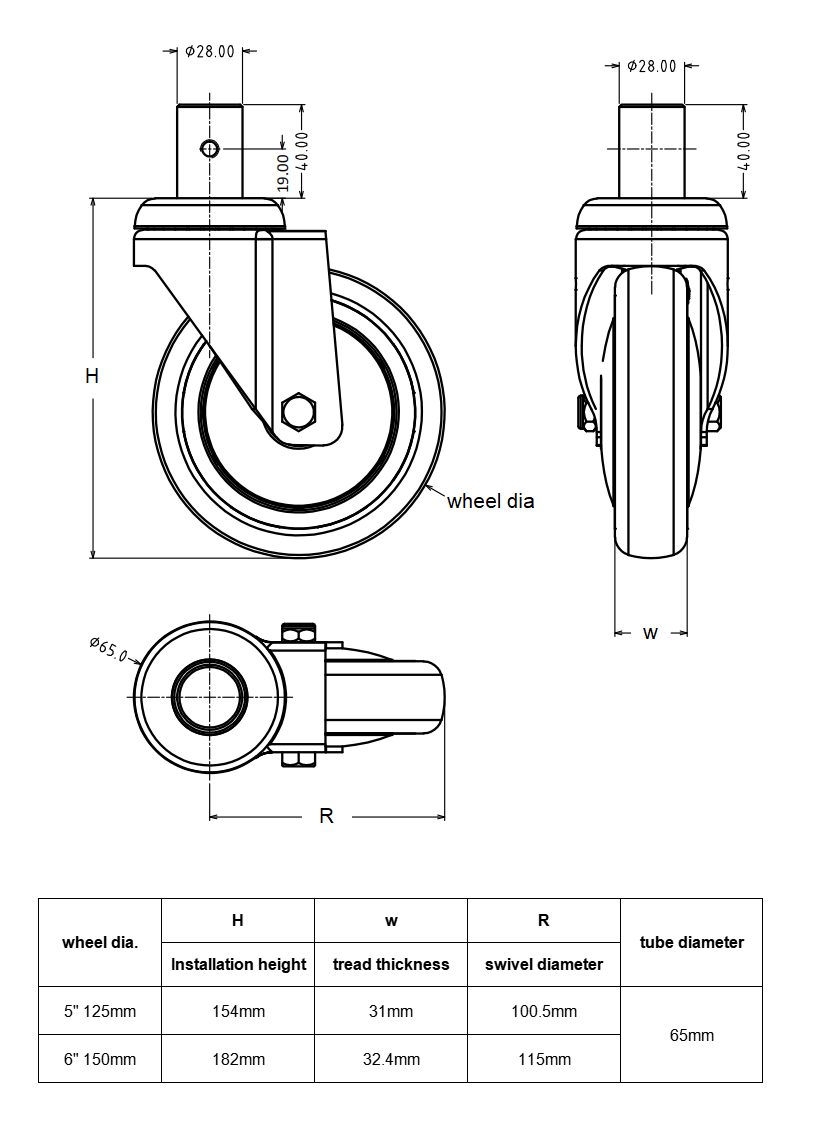

Dimensions

Structure & Mounting
