ZOGO 83series 4" 5" Threaded Stem ABS Covered Medical Caster Wheel

Series：83 SERIES LUXURYCOVER WITH BRAKE CASTER

Types：8344-11G + 8345-11G

Description ：

cross-wound main frame shaft structure; the bearing cover progressive mold is formed at one time; the double pedal design for braking and unlocking are lightweight and convenient

consult Download

Description

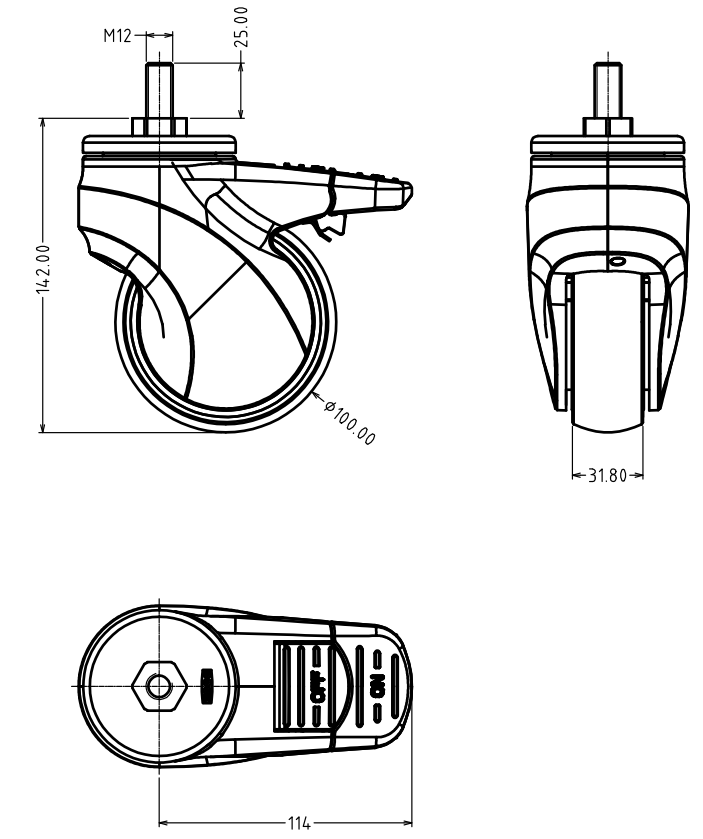

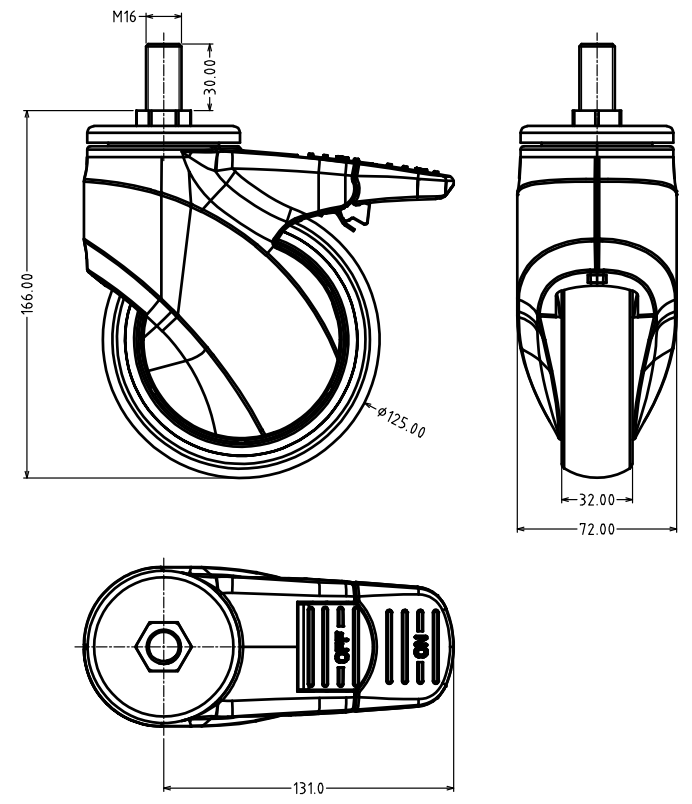

Drawing

Technical Data 4" 100mm 5" 125mm
Wheel diameter	100 mm 125mm
Width of Tread	31.80 mm 32.00mm
Castor Width	72 mm 72mm
Screw Dia.	M12mm M16
Length of Screw	25 mm 30mm
Radius of rotation	114mm 131.0mm
Overall height	142.00 mm 166.00mm
Temperature	- 10 / + 40 °C
Standard	EN 12531
Weight	1.1kg
Load capacity 100 kg
Load capacity(Static) 200 kg
