ZOGO 80series Stem Rod Casters for Medical Hospital Bed 5" 125mm

Series：80 SERIES LUXURYCOVER WITH BRAKE CASTER

Types：8085-11G

Description ：

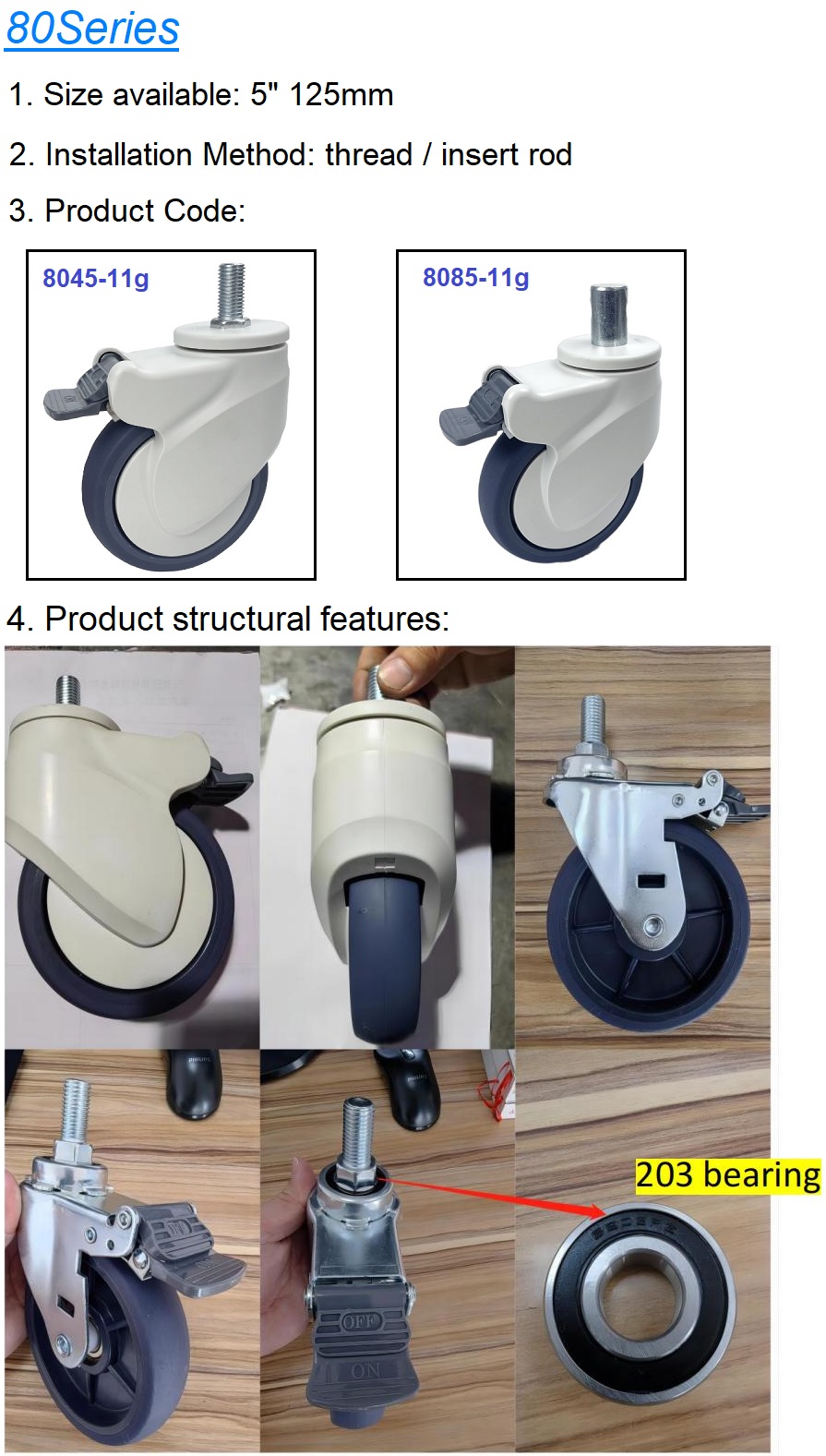

cross-wound main frame shaft structure; the bearing cover progressive mold is formed at one time; the double pedal design for braking and unlocking are lightweight and convenient

consult Download

Description

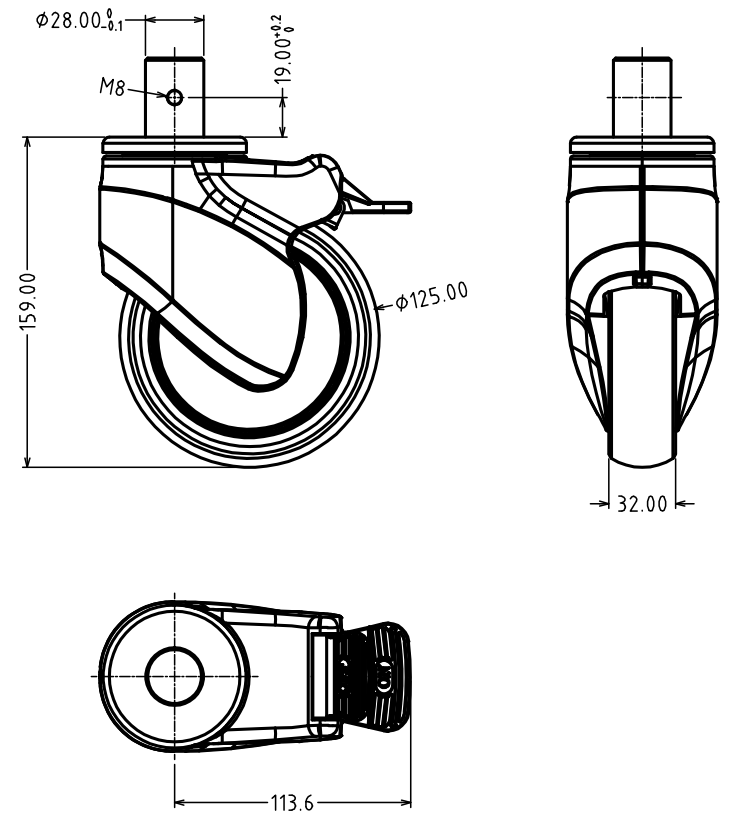

Drawing

Technical Data
Wheel diameter	125 mm
Width of Tread	32.00 mm
Castor Width	72 mm
Diameter of Cylindrical stem	28mm
Length of stem	40 mm
Screw hole diameter	M8 mm
Radius of rotation	113.6mm
Overall height	159.00 mm
Temperature	- 10 / + 40 °C
Standard	EN 12531
Weight	1.1kg
Load capacity 125 kg
Load capacity(Static) 250 kg

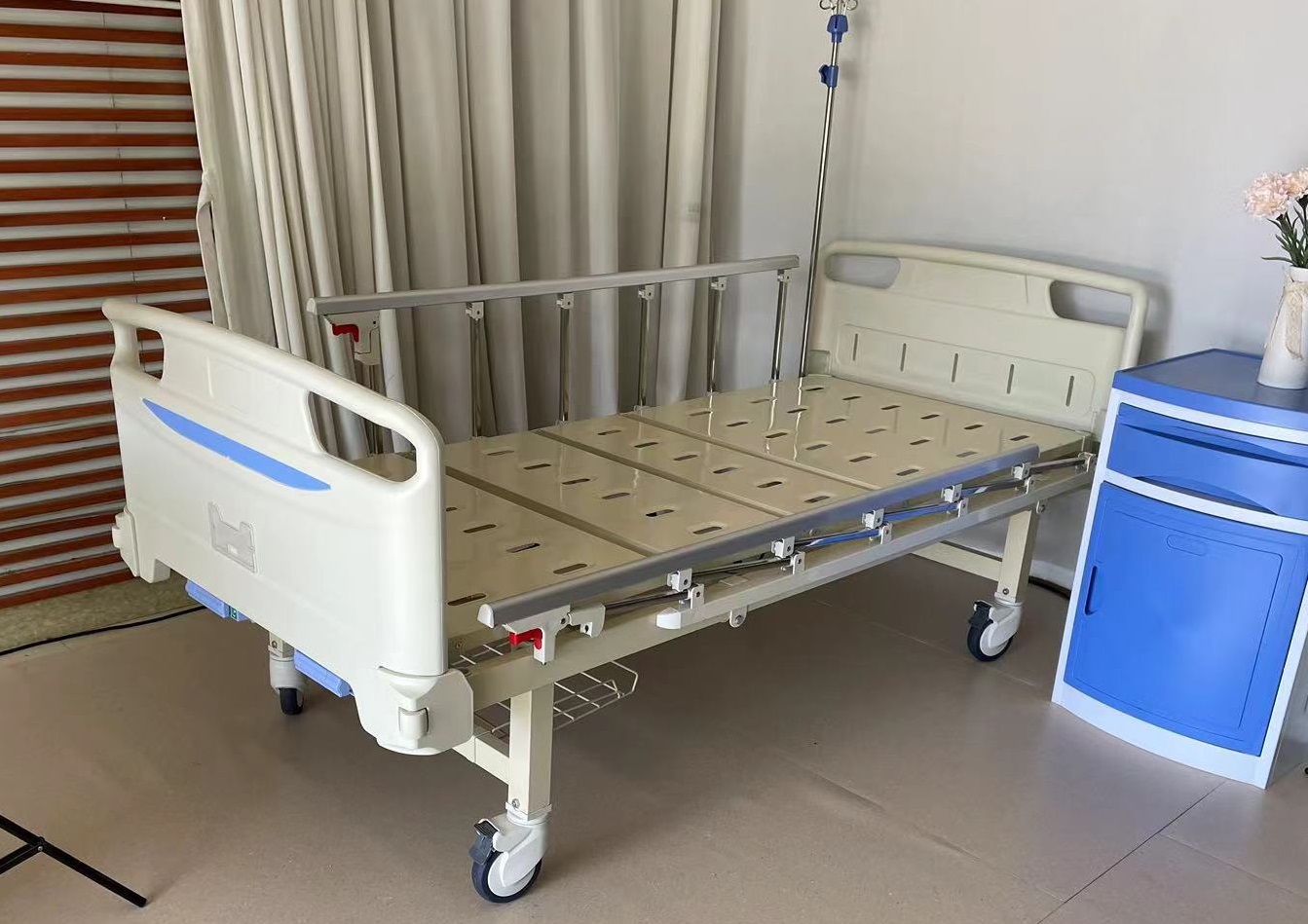

Usage picture:
