ZOGO 82series 5" 125mm Classic Brake Medical Caster Wheel for Hospital Bed

Series：82 SERIES LUXURYCOVER WITH BRAKE CASTER

Types：S8285-813G-4

Description ：

cross-wound main frame shaft structure; the bearing cover progressive mold is formed at one time; the double pedal design for braking and unlocking are lightweight and convenient

consult Download

Description

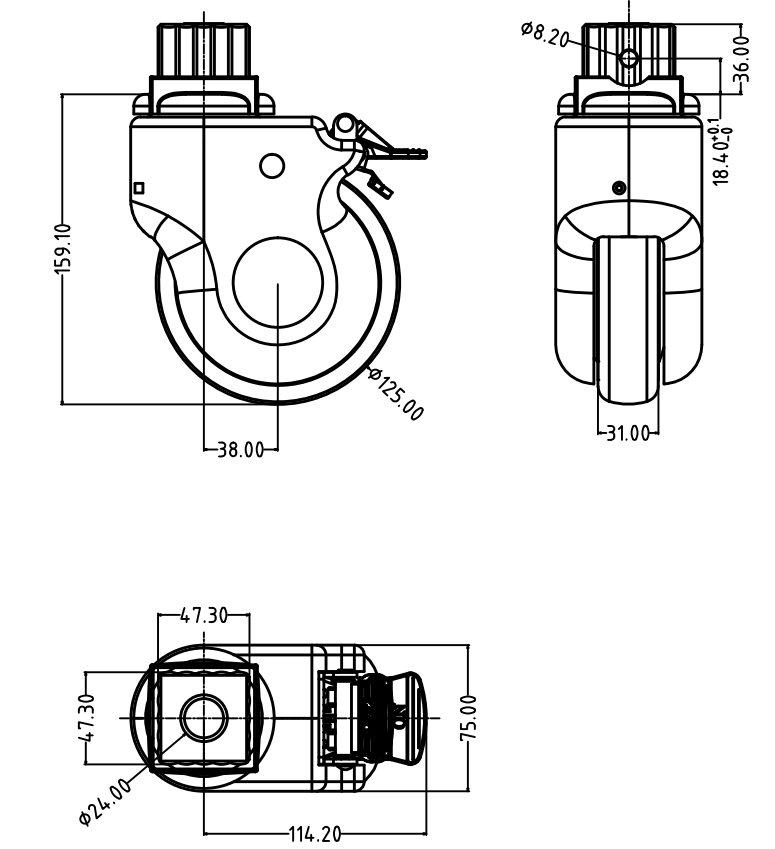

Drawing

Technical Data
Wheel diameter	125 mm
Width of Tread	31 mm
Castor Width	72 mm
Diameter of Cylindrical stem	24mm
Length of Screw bolt	40 mm
Screw hole diameter	8.2 mm
Radius of rotation	114.2mm
Overall height	159.10 mm
Temperature	- 10 / + 40 °C
Standard	EN 12531
Weight	1.1kg
Load capacity 125 kg
Load capacity(Static) 250 kg

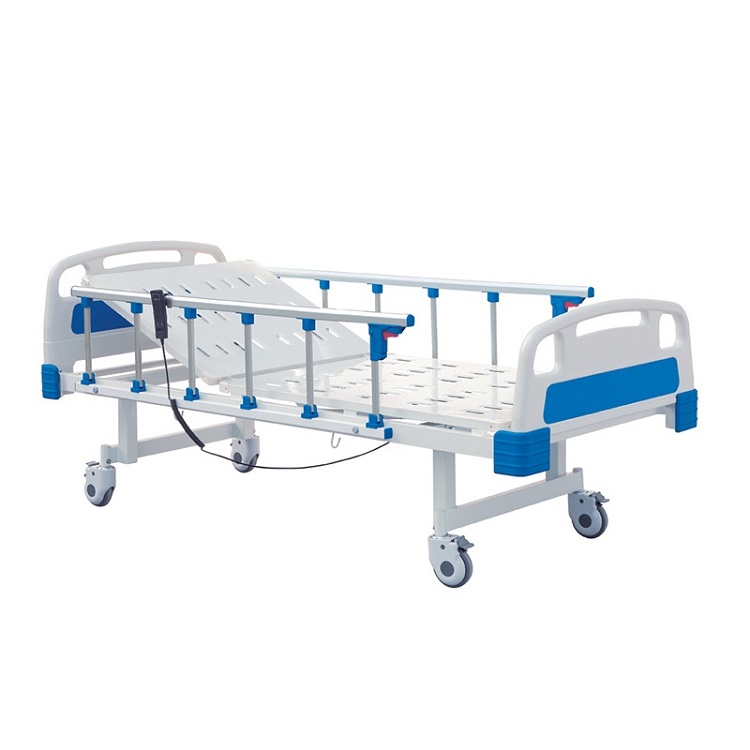

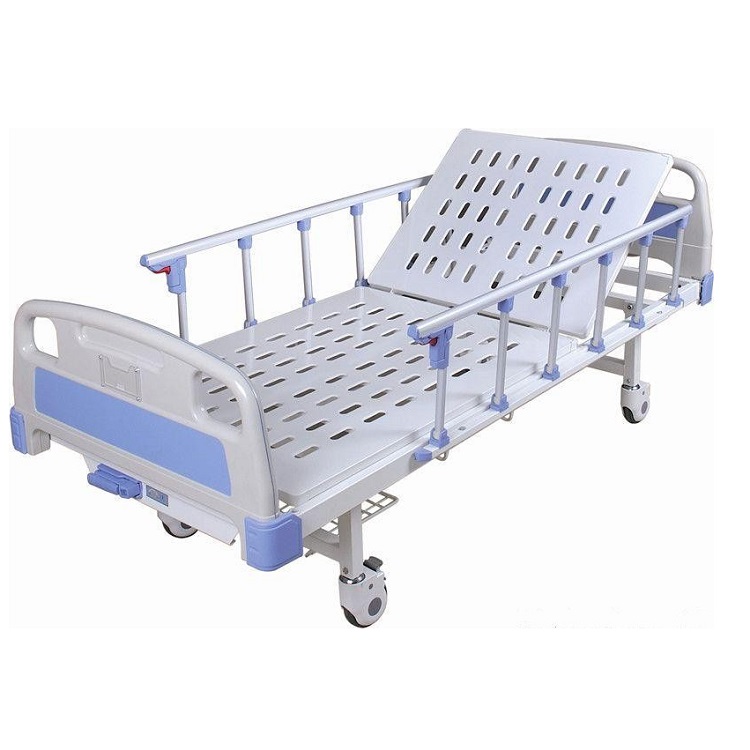

Usage picture:
