4844-11G PRECISION MUTE WHEEL

Series：48 SERIES PRECISION MUTE WHEEL

Types：4844-11G

Description ：

48 series adopt steel frame main structure, with stronger bearing capacity, universal rotation and wheel shaft adopt precision quiet ball bearing, flexible rotation and quiet effect is good; Double linkage brake structure, good braking effect; The wheel plate has the wheel cover design, dustproof, anti-winding, protects the wheel rotation.

consult Download

Description

Technical Data
Wheel diameter	99 mm
Width of Tread	25 mm
Castor width	46mm
Bolt-Ø	M12
Bolt length	25 mm
Hexagonal opposite S	17 mm
Radius of rotation	83.42 mm
Overall height	139.5 mm
Temperature	- 10 / + 40 °C
Standard	EN 12531
Weight	0.525 kg
Load capacity	80 kg
Load capacity(Static)	160 kg

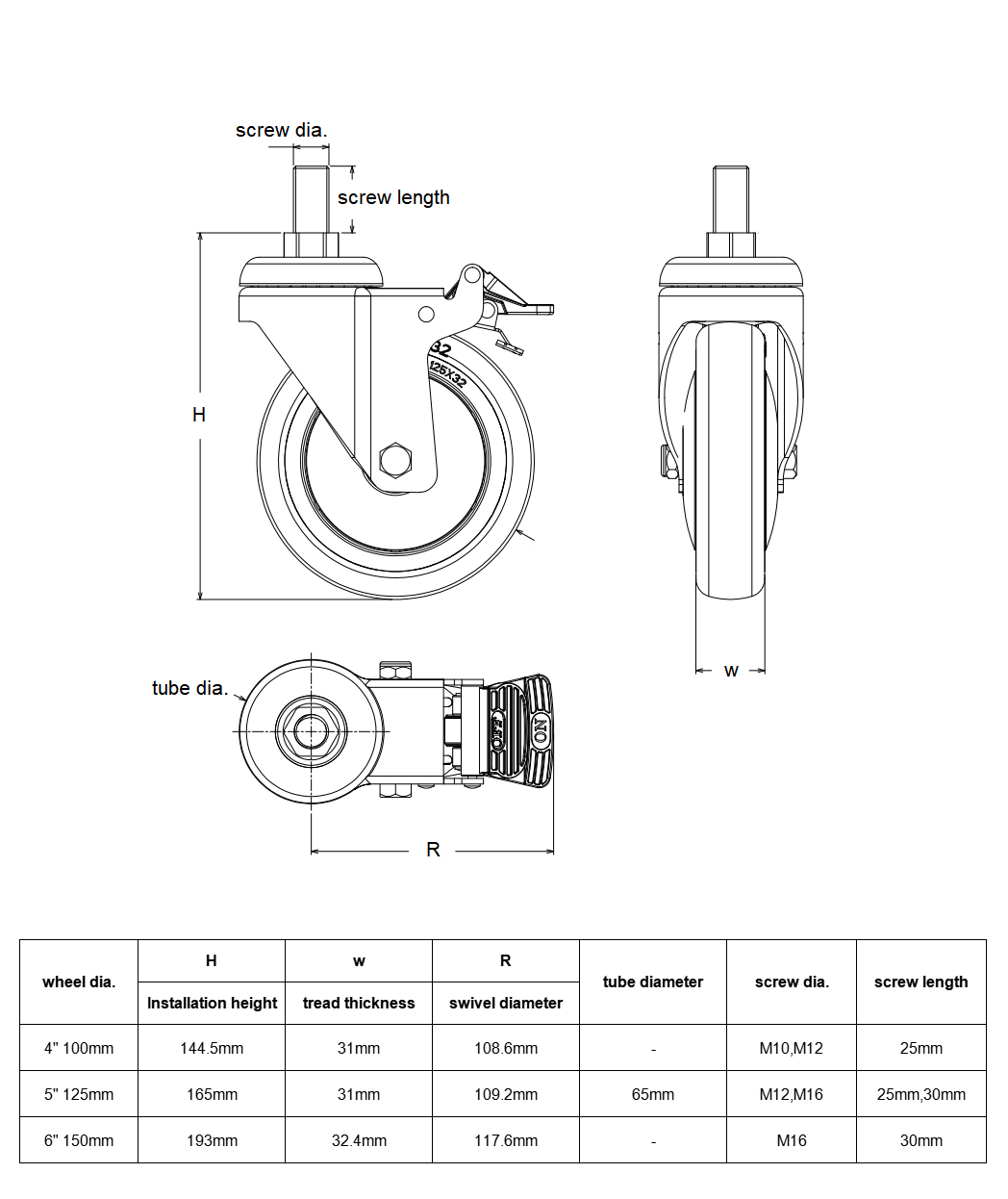

Dimensions

Structure & Mounting
