4834-11G PRECISION MUTE WHEEL

Series：48 SERIES PRECISION MUTE WHEEL

Types：4834-11G

Description ：

48 series adopt the steel frame main structure, have the stronger bearing capacity, the universal rotation and the wheel shaft adopt the precise mute ball bearing, the rotation is flexible and the mute effect is good; Double linkage brake structure, good braking effect; The wheel plate has the wheel cover design, dustproof, anti-winding, protects the wheel rotation.

consult Download

Description

Technical Data
Wheel diameter	99 mm
Width of Tread	25 mm
Castor width	44.9 mm
Bolt-Ø	M12
Bolt length	25 mm
Hexagonal opposite S	17 mm
Radius of rotation	81.5 mm
Castor width	139.5 mm
Temperature	- 10 / + 40 °C
Standard	EN 12531
Weight	0.465 kg
Load capacity	80 kg
Load capacity(Static)	160 kg

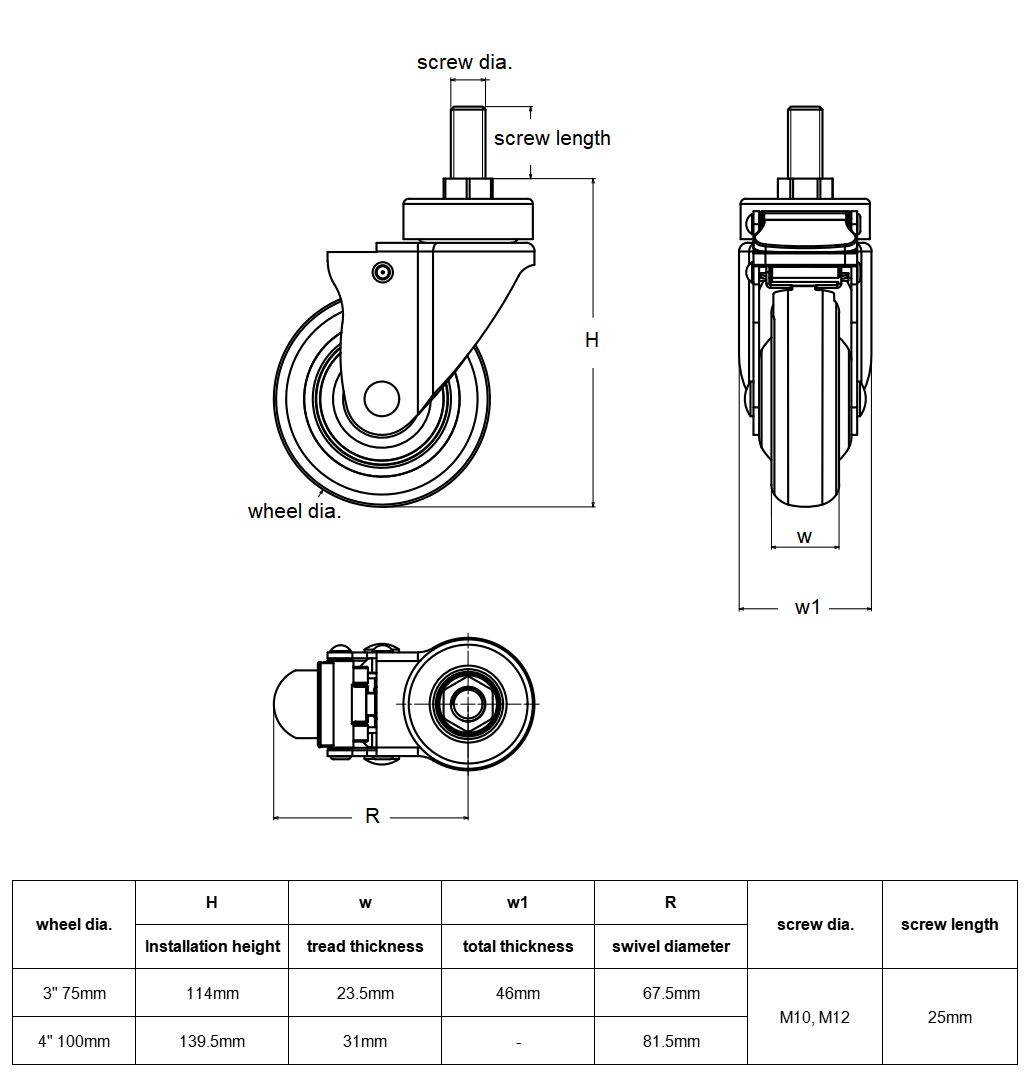

Dimensions

Structure & Mounting
