ZOGO 85series 6" 150mm Heavy Duty Caster Wheel with Brake for Trolley Stretcher

Series：85 SERIES HEAVY DUTY CASTER WHEEL

Types：8586-813G-8

Description ：

steel frame main structure, with stronger bearing capacity, universal rotation and wheel shaft adopt precision quiet ball bearing, flexible rotation and quiet effect is good; Double linkage brake structure, good braking effect; The wheel plate has the wheel cover design, dustproof, anti-winding, protects the wheel rotation.

consult Download

Description

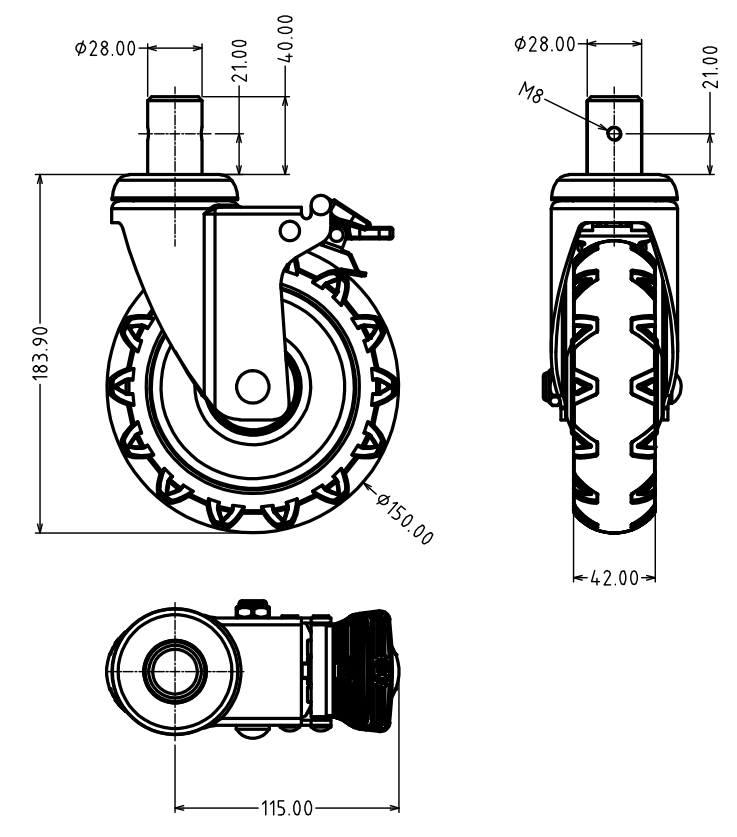

Drawing

Technical Data
Wheel diameter	150 mm
Width of Tread	42.00 mm
Castor Width	- mm
Stem rod Dia.	28mm
Length of stem rod	40 mm
Radius of rotation	115mm
Overall height	183.90 mm
Temperature	- 10 / + 40 °C
Standard	EN 12531
Weight	1.7kg
Load capacity 160 kg
Load capacity(Static) 320 kg
