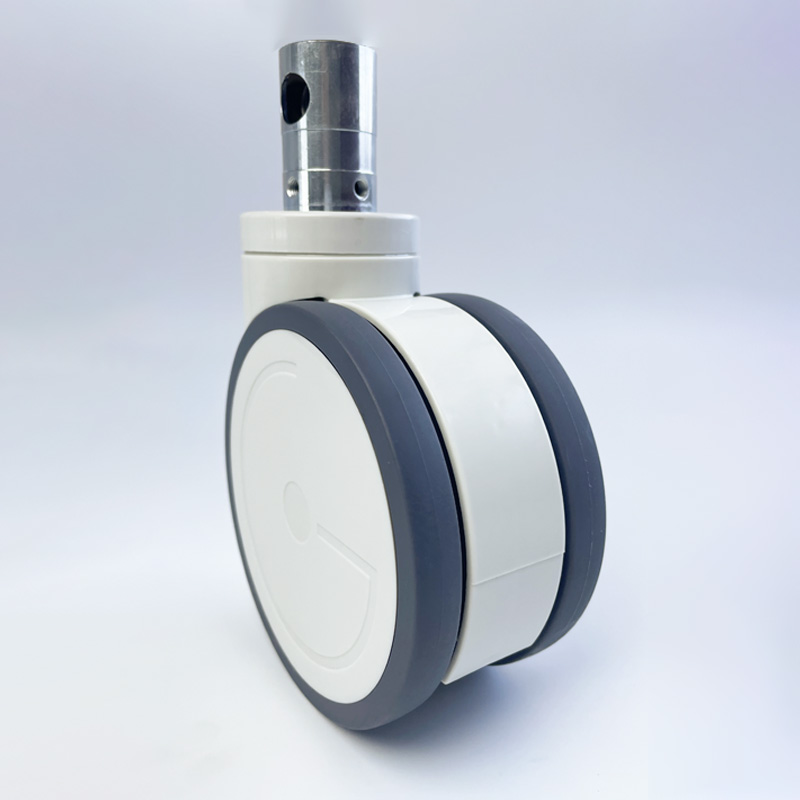

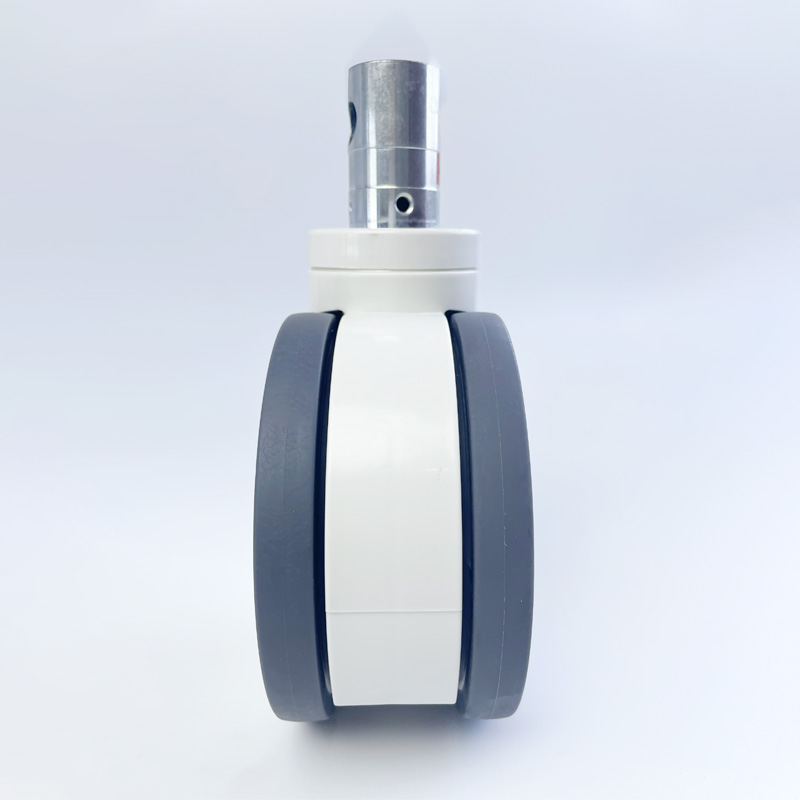

ZOGO 61SERIES 5" 6" New Twin Wheel Short Stem Pole Central Brake Lock Caster Wheel

Series：61 SERIES CENTRAL BRAKE LOCK CASTER WHEEL

Types：S6115-12G + S6116-12G

Description ：

overall high-pressure steel frame; the outer cover is made of customized engineering plastic ABS; Rotating casters with center lock, full lock or directional lock; the locking system is fixed and free of debugging, easy to install, easy to brake, flexible and silent; the wheels are made of high-strength polyurethane frosted tread

consult Download

Description

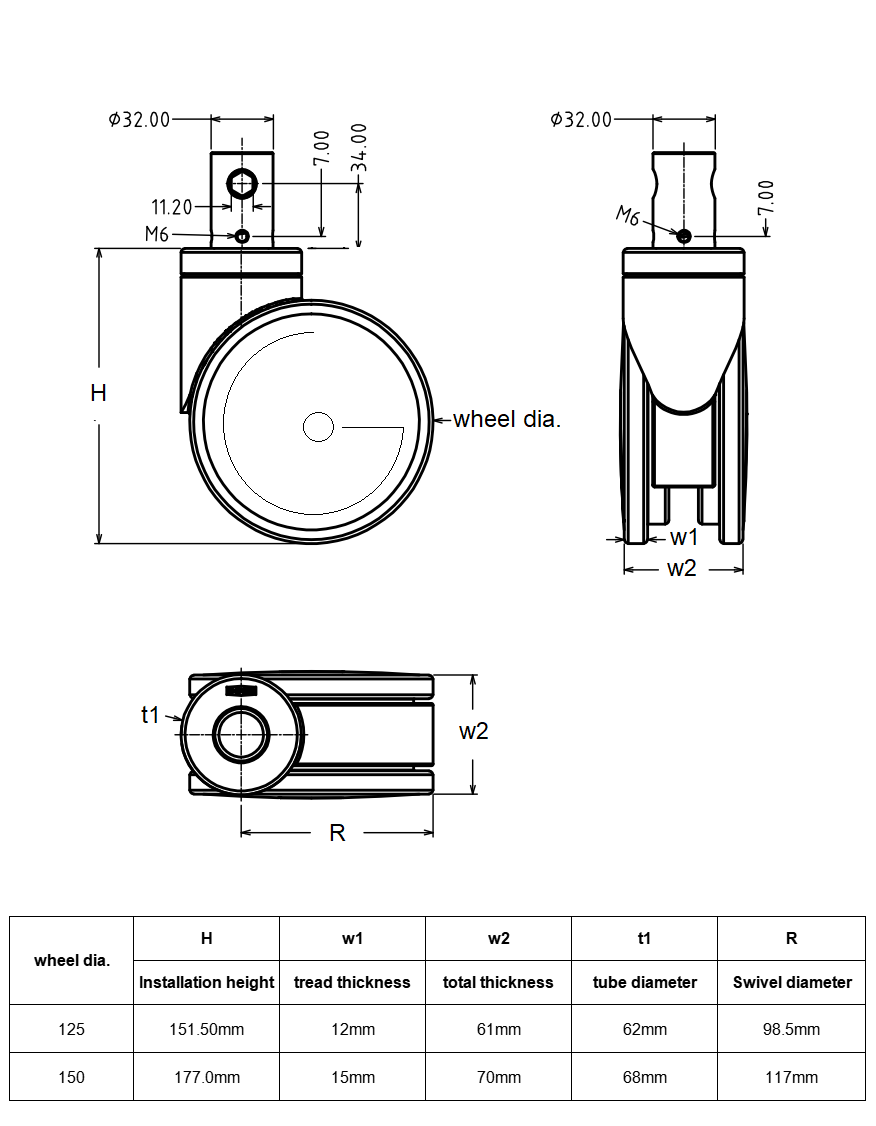

Drawing

Features

* Internal steel support structure, not all-plastic casters

* TPR tread, material hardness reaches more than 80°, wear-resistant, quiet, and good hydrolysis resistance

* ABS cover dirt-resistant and easy to clean

* 2 functions: free + total lock ; 3 functions:

* 30° brake angle or 45° brake angle

Testing

* Running test 20,000 meters

* Slope test (10°) No sliding

* Load test (single) Dynamic 120kg, static 250kg

* Obstacle test Set up a 20mm high obstacle and hit the caster back and forth 10 times without any abnormality
